Fourth Rotary
    • Fourth Rotary
    • Fourth Rotary
    • Fourth Rotary
    • Fourth Rotary
    • Fourth Rotary
    • Fourth Rotary
    • Fourth Rotary
    • Fourth Rotary
    • Fourth Rotary
Product Detail:


fourth rotary


5M-6-80A

5M-6-80B

5M-6-100A

5M-6-100B

5M-3-100A

5M-3-100B

14-50-80A

14-50-80B

14-50-100B

14-100-100A

14-100-100B

Tailstocl: MT2

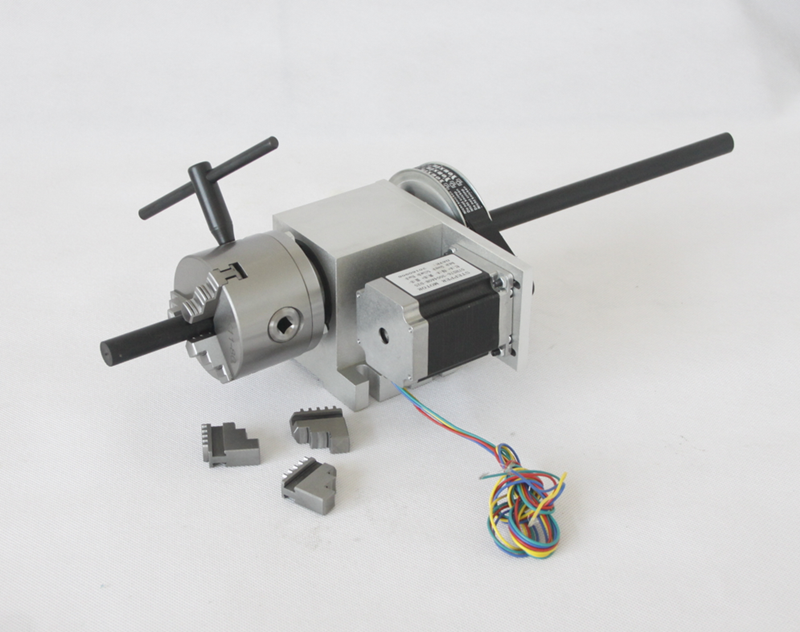

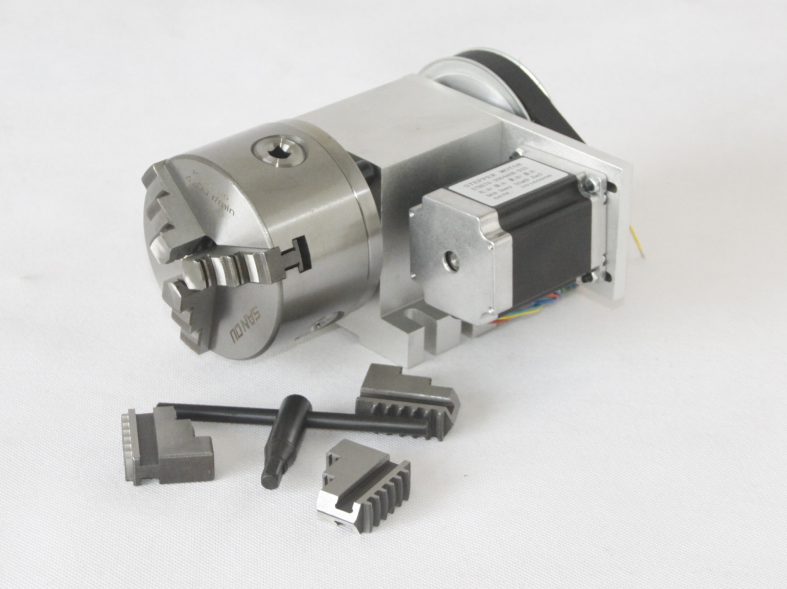

5M-6-80A

Chuck type: K11-80mm 3 jaw centering chuck

Center height: 65mm

Angle: 0.3°/ step

Output shaft diameter: 20mm

Hollow inner diameter: 16mm

Reducing ratio: 6:1

Stepper motor: 2-phase Nema23 3Amps 20kg.cm holding torque

Accessories: Set of Anti-claw and wrenches

Dimension: 210MM*168MM*110MM

Weight: 5.5KG



5M-6-80B

Chuck type: K11-80mm 4 jaw centering chuck

Center height: 65mm

Angle: 0.3°/ step

Output shaft diameter: 20mm

Hollow inner diameter: 16mm

Reducing ratio: 6:1

Stepper motor: 2-phase Nema23 3Amps 20kg.cm holding torque

Accessories: Set of Anti-claw and wrenches

Dimension: 210MM*168MM*110MM

Weight: 5.5KG

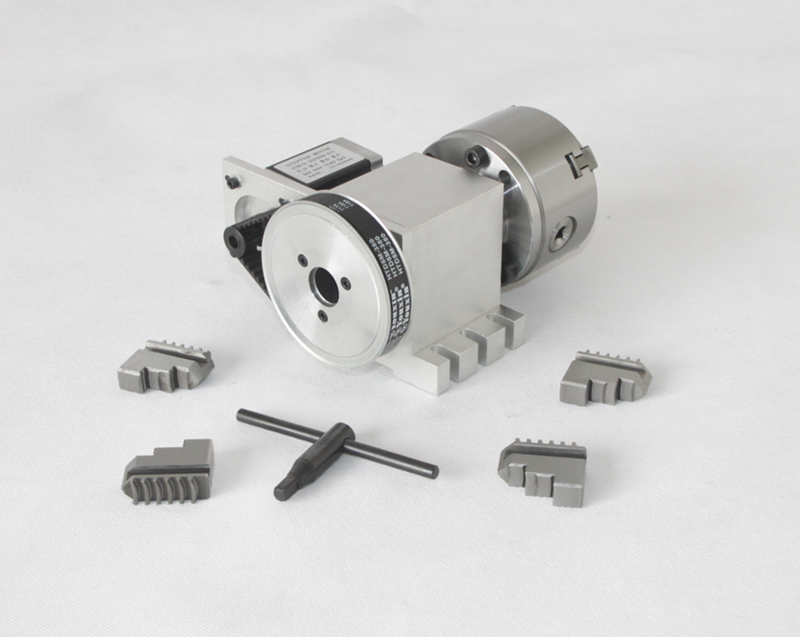

5M-6-100A

Chuck type: K11-100mm 3 jaw centering chuck

Center height: 65mm

Angle: 0.3°/ step

Output shaft diameter: 30mm

Hollow inner diameter: 22mm

Reducing ratio: 6:1

Stepper motor: 2-phase Nema23 3Amps 20kg.cm holding torque

Accessories: Set of Anti-claw and wrenches

Dimension: 210MM*168MM*115MM

Weight: 7.5KG



5M-6-100B

Chuck type: K11-100mm 4 jaw centering chuck

Center height: 65mm

Angle: 0.3°/ step

Output shaft diameter: 30mm

Hollow inner diameter: 22mm

Reducing ratio: 6:1

Stepper motor: 2-phase Nema23 3Amps 20kg.cm holding torque

Accessories: Set of Anti-claw and wrenches

Dimension: 210MM*168MM*115MM

Weight: 5.5KG



5M-3-100A

Chuck type: K11-100mm 3 jaw centering chuck

Center height: 65mm

Angle: 0.6°/ step

Output shaft diameter: 30mm

Hollow inner diameter: 22mm

Reducing ratio: 3:1

Stepper motor: 2-phase Nema34 4.5Amps 45kg.cm holding torque

Accessories: Set of Anti-claw and wrenches

Dimension:210MM*210MM*115MM

Weight: 9.0KG



5M-3-100B

Chuck type: K11-100mm 4 jaw centering chuck

Center height: 65mm

Angle: 0.6°/ step

Output shaft diameter: 30mm

Hollow inner diameter: 22mm

Reducing ratio: 3:1

Stepper motor: 2-phase Nema34 4.5Amps 45kg.cm holding torque

Accessories: Set of Anti-claw and wrenches

Dimension:210MM*210MM*115MM

Weight: 9.0KG

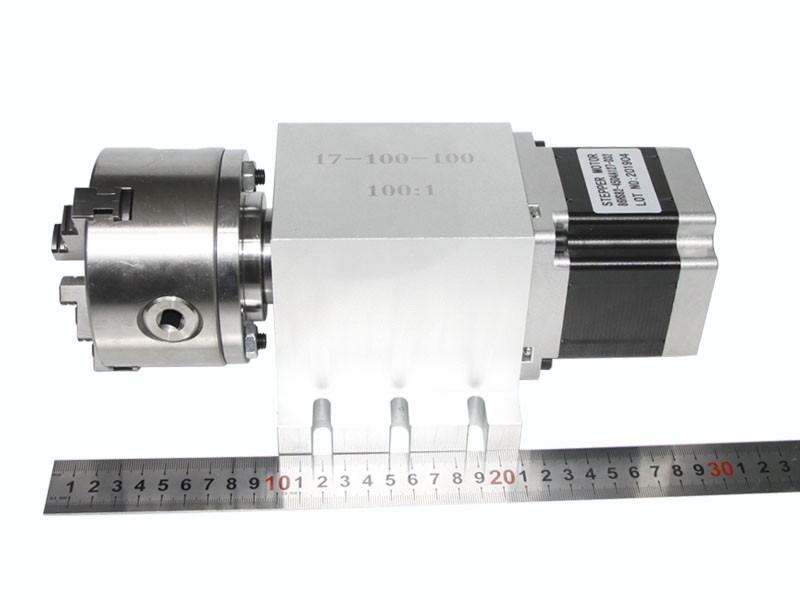

14-50-100B/14-100-100B

Chuck type: K11 100mm 4 jaw centering chuck

Center height: 65mm

Total height: 115mm

Angle: 0.018°/ step (0.036°/ step for 50:1)

Gear box output shaft diameter: 25mm

Reducing ratio: 100:1 (or 50:1 )

Stepper motor: 2-phase Nema23 3Amps 9kg.cm holding torque

Accessories: Set of Anti-claw and wrenches

Weight: 6.5KG

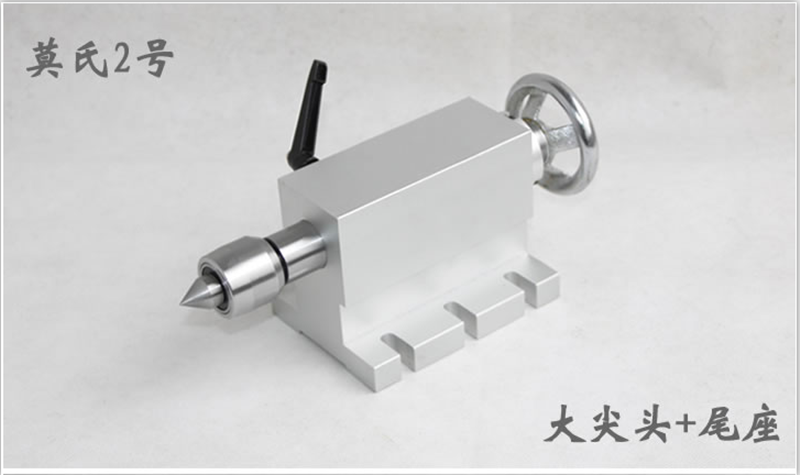

Tailstock

Center Height: 65mm

Stretch distance:50mm

Top tip: activity type

Axial locking wrench for tailstock

Net Weight:2.5kgs





The 4th and 5th Axis

Chuck type: K01-100mm 3 jaw chuck

Center height: 98mm

The 4th axis reducing ratio: 8:1

The 5th axis reducing ratio: 6:1

Working table size: 100x125mm

Stepper motor: 2-phase Nema23 3Amps 20kg.cm holding torque Size: 440x150x160mm

Weight: 12KG
