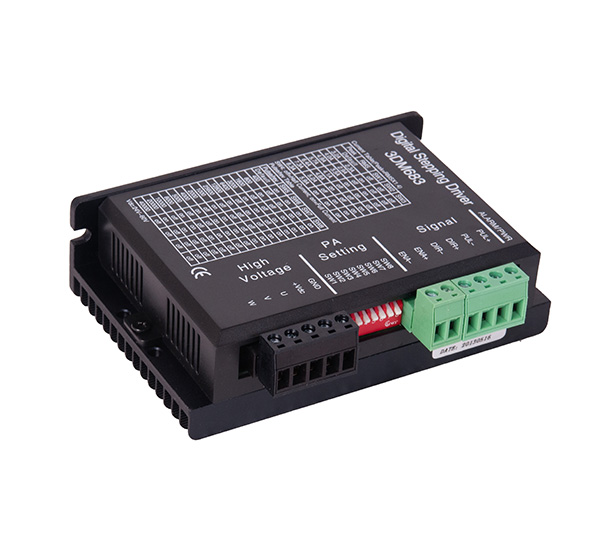

3DM683 3 phase digital stepper motor driver
  • Product Name:

    3DM683 3 phase digital stepper motor driver

  • Contact Us  Contact Us:
  • info@dewochina.com
  • Share:
    • 3DM683 3 phase digital stepper motor driver
Product Detail:

3DM683D

Quick Detail:


Features

1.       Adoption of 32-bit DSP, pure sine wave subdivision technology

2.       Low-noise, low-vibration and low temperature rising

3.       Voltage 24-60VDC

4.       With 8 stalls output current setting, current 3.2-8.3A

5.       With 16 stalls microstep subdivision setting

6.       Automatic half current, self-test, over voltage, under voltage, over current protection

7.       Internal optical isolation, highest frequency response 200KHZ

     8.  Suitable for nema 23, nema 34 stepper motor current under 8.3A


Current selection

Peak

RMS

SW1

SW2

SW3

Default

OFF

OFF

OFF

3.2A

2.3A

ON

OFF

OFF

4.0A

2.9A

OFF

ON

OFF

4.9A

3.5A

ON

ON

OFF

5.7A

4.1A

OFF

OFF

ON

6.4A

4.6A

ON

OFF

ON

7.3A

5.2A

OFF

ON

ON

8.3A

5.9A

ON

ON

ON


Microstep selection

Pulse/Rev

SW5

SW6

SW7

SW8

Default

ON

ON

ON

ON

800

OFF

ON

ON

ON

1600

ON

OFF

ON

ON

3200

OFF

OFF

ON

ON

6400

ON

ON

OFF

ON

12800

OFF

ON

OFF

ON

25600

ON

OFF

OFF

ON

51200

OFF

OFF

OFF

ON

1000

ON

ON

ON

OFF

2000

OFF

ON

ON

OFF

4000

ON

OFF

ON

OFF

5000

OFF

OFF

ON

OFF

8000

ON

ON

OFF

OFF

10000

OF

ON

OFF

OFF

20000

ON

OFF

OFF

OFF

40000

OFF

OFF

OFF

OFF
