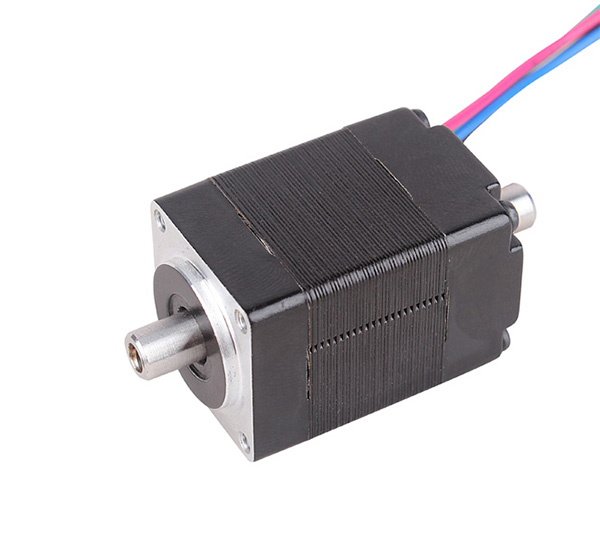

Nema8 20HS 2 phase 1.8° hybrid stepper motor
  • Product Name:

    Nema8 20HS 2 phase 1.8° hybrid stepper motor

  • Contact Us  Contact Us:
  • info@dewochina.com
  • Share:
    • Nema8 20HS 2 phase 1.8°  hybrid stepper motor
Product Detail:

stepper motor parameter list:

ItemSpecifications
Step Angle Accuracy±5%
Resistance Accuracy±10%
Inductance Accuracy±20%
Temperature Rise80℃ Max
Ambient Temperature-20℃~+50℃
Insulation Resistance100MΩMin.500VDC
Dielectric Strength500VAC for one minute
Shaft Radial Play0.02Max.(450g-load)
Shaft Axial Play0.08Max.(450g-load)



Model NoStep
Angle
(°)
Rated
Voltage
(V)
Rated
Current
(A)
Phase
Resistance
(Ω)
Phase
Inductance
(mH)
Holding
Torque
(g.cm)
Rotor
Inertia
(g.cm²)
Motor
Length
(mm)
Lead
No.
Motor
Weight
(g)
20HS28-02041.84.60.2238.21402.528450
20HS30-05061.85.750.511.51.71802.830660
20HS33-06041.83.90.64.51.61803.233470
20HS38-06041.860.6105.52603.638480
20HS42-08041.81.20.81.55.4300442490
Above only for representative products,products of special request can be made according to the customer request.
